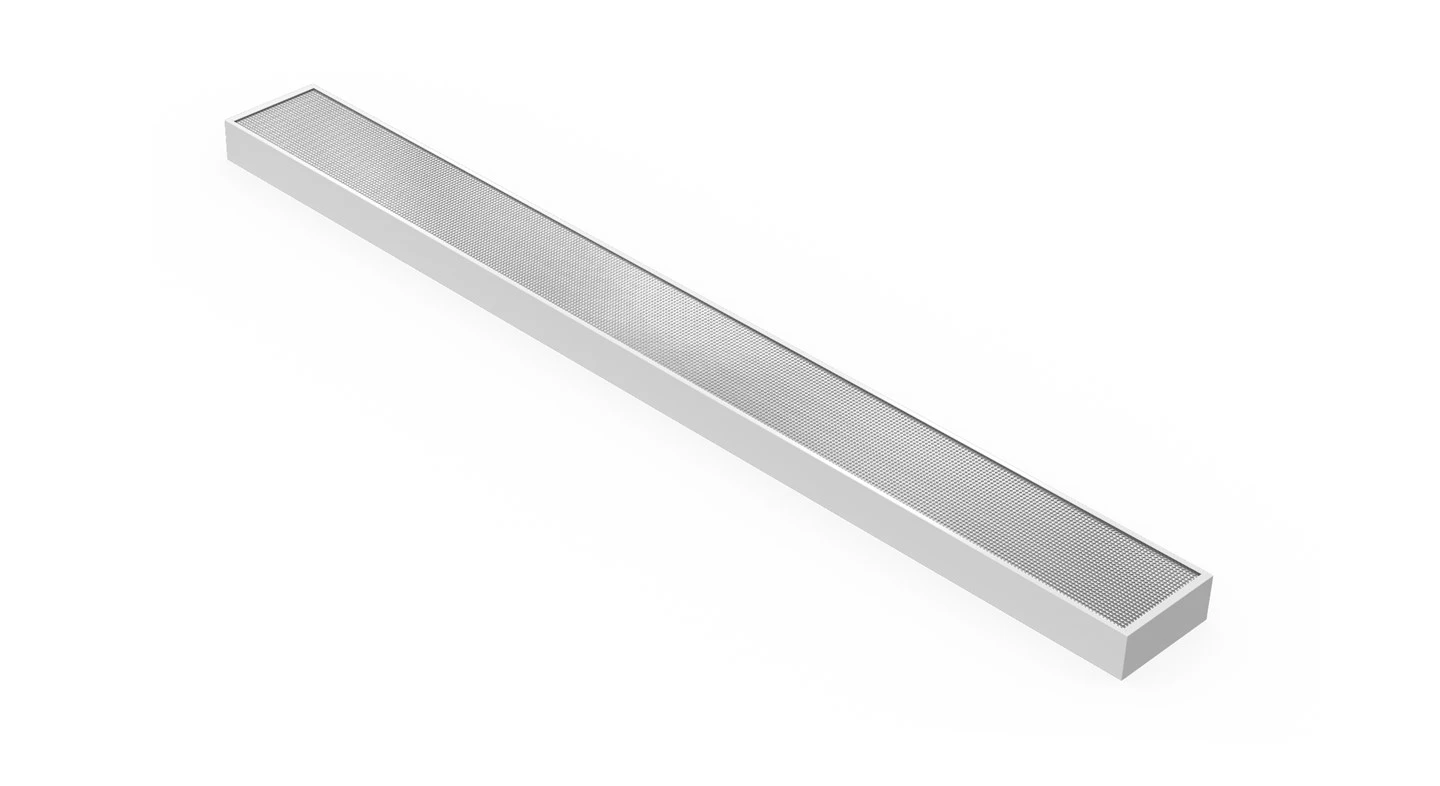

Lampa oświetleniowa Brighton UGR

Lampa oświetleniowa Brighton UGR

Opis:

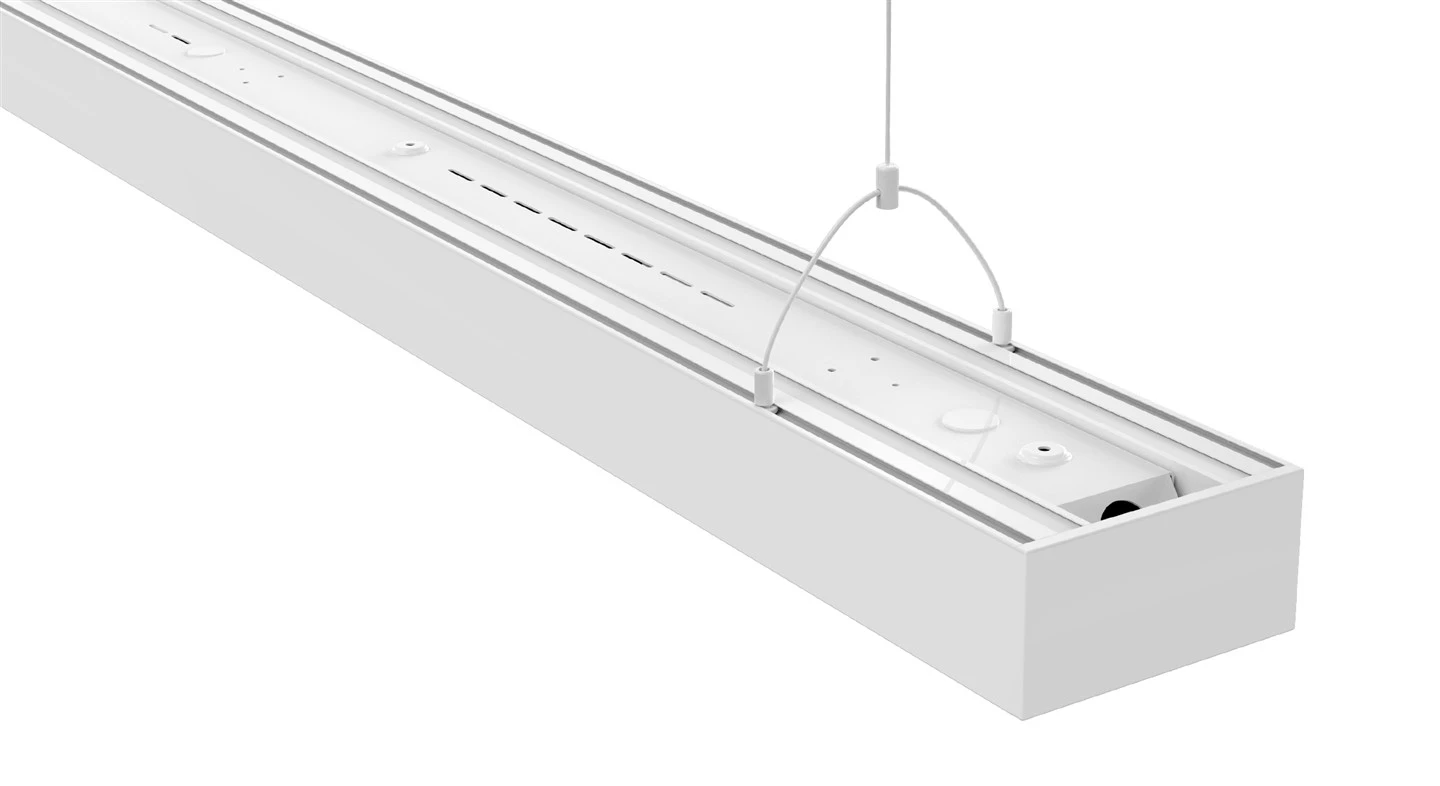

Oprawy oświetleniowe Brighton Battens to najnowsza konstrukcja, która nie tylko spełnia optyczne UGR<19, but also use more costive design solution. Brighton battens lamp use the prismatic diffuser the optical material, and also use high-power LED and secondary lens as the light source. Brighton batten uses a back towed junction box for drivers and components installation,and also, the junction box acts as a installation box for the lighting unit. The Junction box can withstand up to four times weight of the lighting unit, which not only provides effective quality insurance, but also makes the product easy for installation.









Cechy:

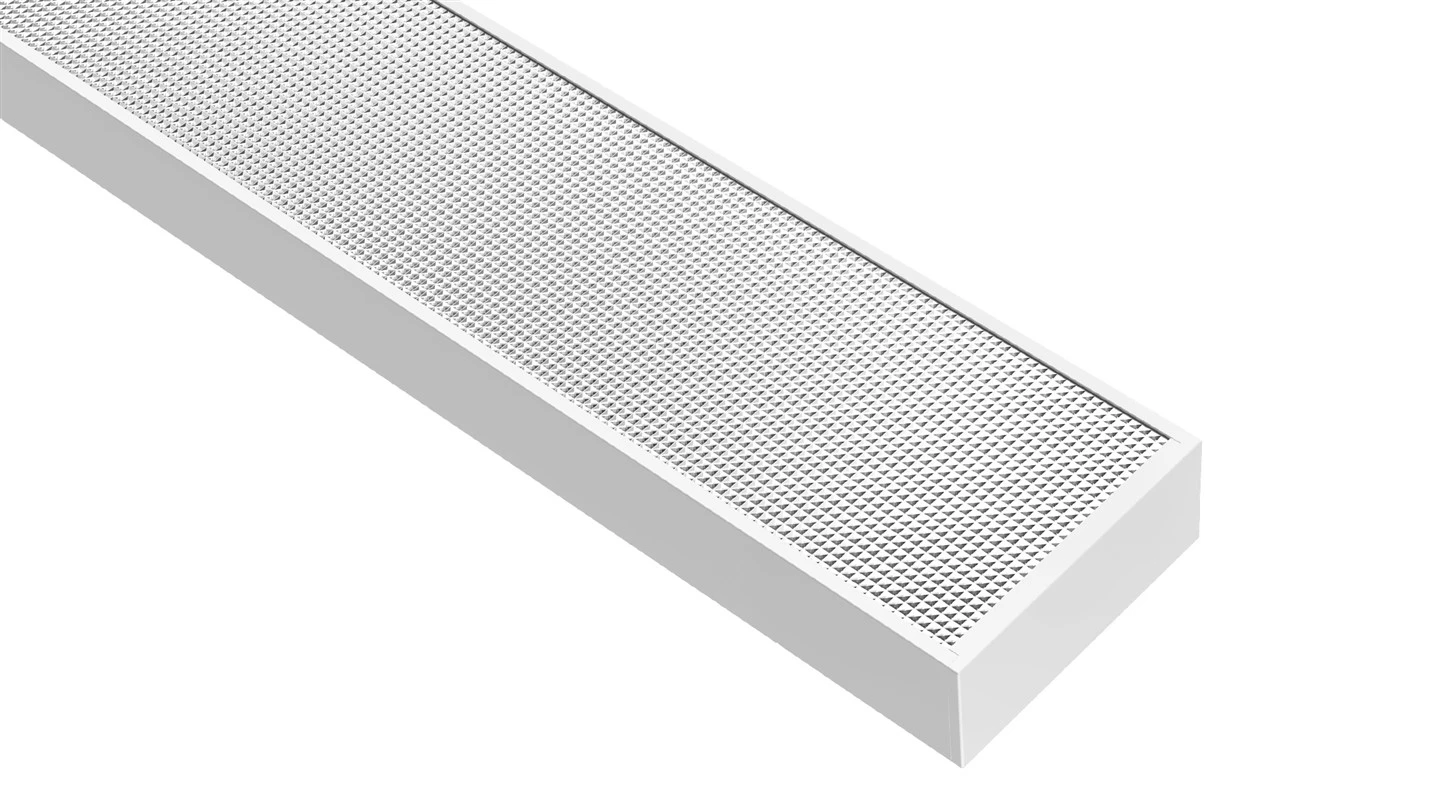

>UGR<19 with prismatic diffuser

>Przełącznik zasilania i CCT na sterowniku LED

>120mm|Dostępne szerokości 150 mm

>Ra80 lub Ra90, SDCM<3

>Światło UP przy stałej mocy 2X4W jako opcja

>Końcówka lub tylna besa do wprowadzenia kabla

>Różne funkcje jako opcje

>Dostępny wymiar 4 stopy / 5 stóp / 6 stóp

>Montaż wpuszczany / natynkowy / montaż w zawieszeniu

>5 lat gwarancji

Send Inquiry
Download
Description
Technical Parameters

WSTĘP:

Oświetlenie LED Brighton Batten oferuje opcjonalnie szerokości 120 mm i 150 mm, UGR<19, and wattage and CCT switches as standard features of strip lights. Brighton battens led light are widely used by customers in office, commercial, education, and other applications.



NIERUCHOMOŚĆ:

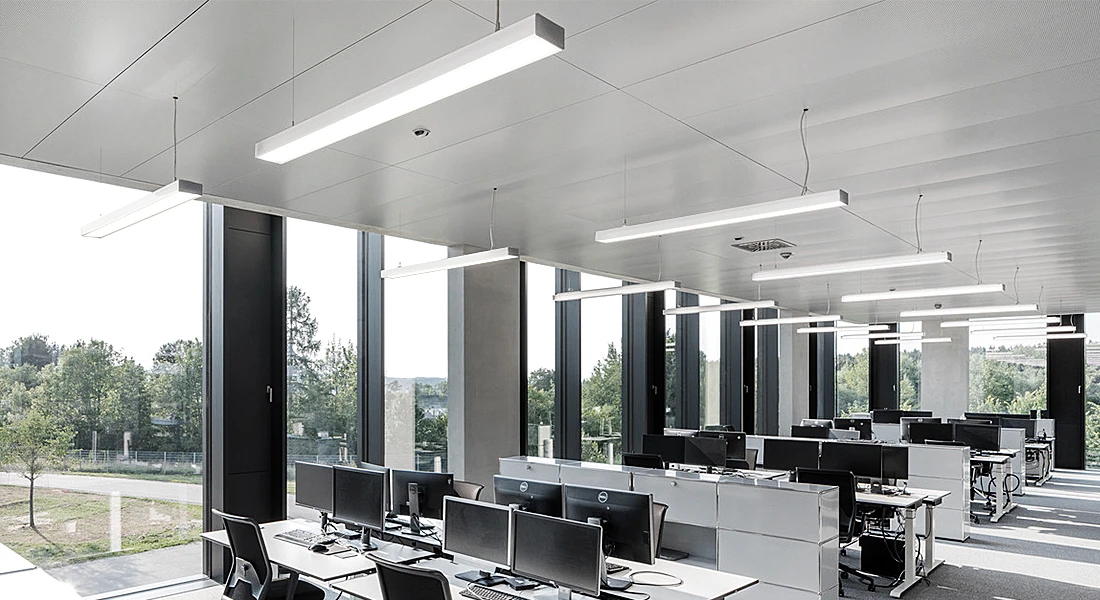

Brighton UGR Batten 150 mm to nasza najnowsza lampa listwowa, zaprojektowana z myślą o doskonałej wydajności i elastyczności. Dzięki szerokości 150 mm lampa ta płynnie integruje się z każdą przestrzenią i charakteryzuje się niskim poziomem olśnienia (UGR).<19. Its advanced LED driver features a power and CCT switch, allowing you to customize brightness and warmth to suit your needs. Our LED strip lights are perfect for a variety of applications, from office/commercial/industrial to campuses, blending technology with stylish design.



Kod zamówienia

Szerokość

Moc znamionowa

LM/W

Lumen

SDCM/Ra

Wat/CCT
Przełącznik

Wymiary produktu

GW/CTN

ILOŚĆ/CTN

BT500-04W-DT1-40F01

120mm

20W/40W

typ.130

typ.2600/5200

<3 / Ra80/90

Y

Dł. 1200 x szer. 120 x wys. 60

8,84 kg

4szt

BT500-05W-DT1-50F01

120mm

30/50W

typ.130

typ.3900/6500

<3 / Ra80/90

Y

Dł.1500xszer.120xwys.60

11,12 kg

4szt

BT500-06W-DT1-60F01

120mm

30/60W

typ.130

typ.3900/7800

<3 / Ra80/90

Y

Dł.1800xszer.120xwys.60

14,52 kg

4szt

BT510-04W-DT1-40F01

150mm

20/40W

typ.130

typ.2600/5200

<3 / Ra80/90

Y

Dł. 1200 x szer. 150 x wys. 60

11,12 kg

4szt

BT510-05W-DT1-50F01

150mm

25/50W

typ.130

typ.3900/6500

<3 / Ra80/90

Y

Dł.1500xszer.150xwys.60

13,40 kg

4szt

BT510-06W-DT1-60F01

150mm

30/60W

typ.130

typ.3900/7800

<3 / Ra80/90

Y

Dł. 1800 x szer. 150 x wys. 60

16,80 kg

4szt

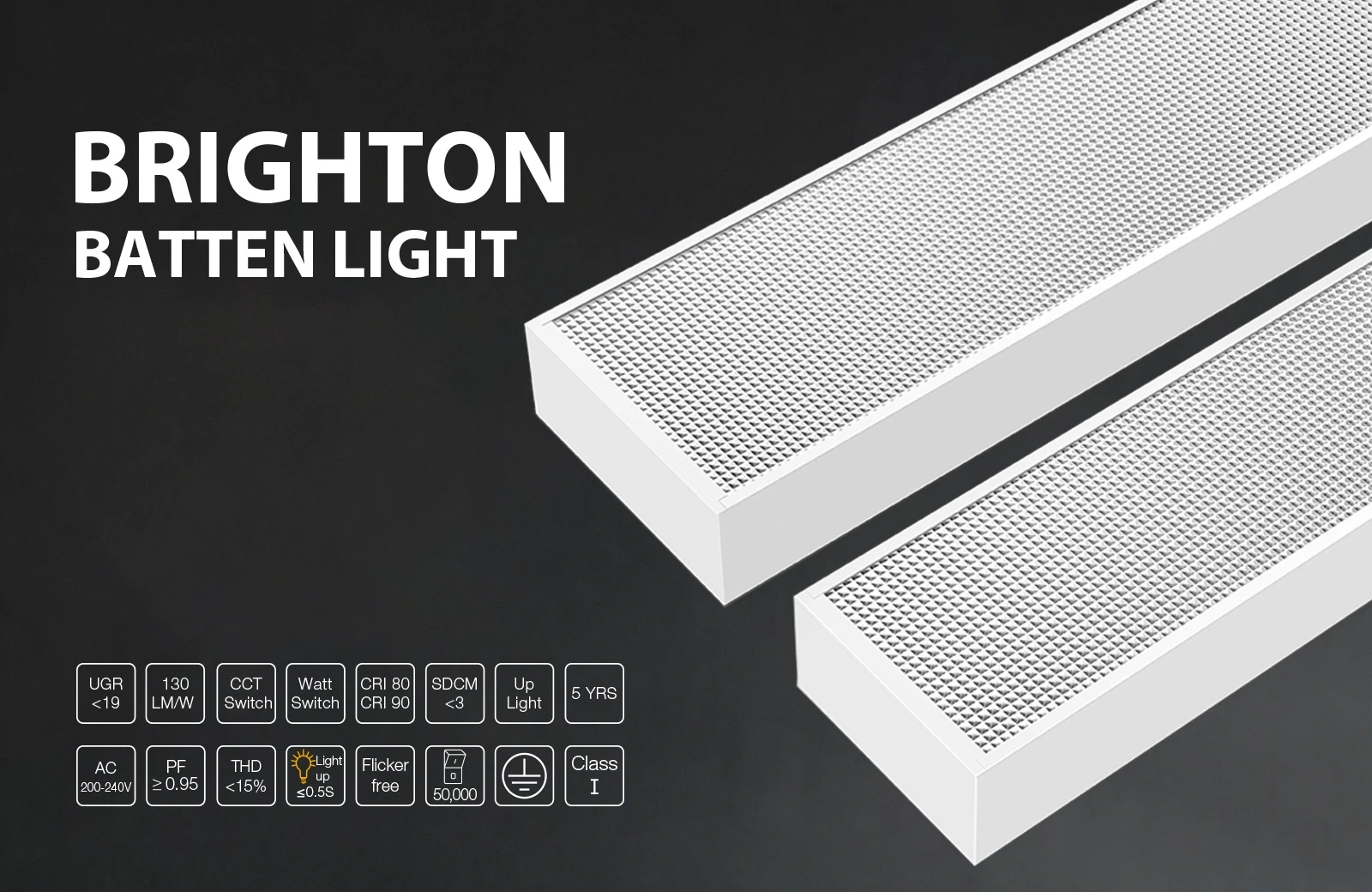

Brighton 01

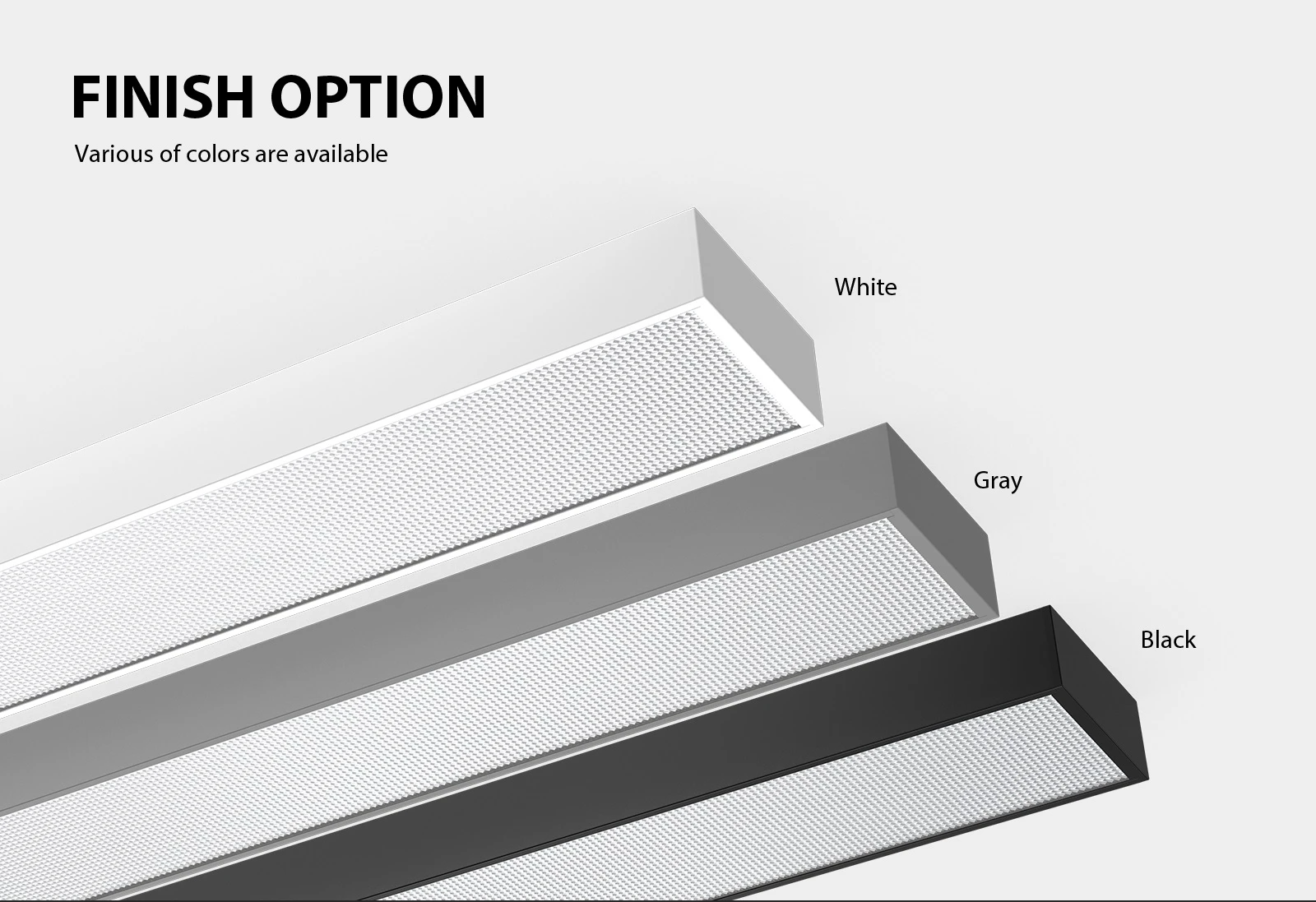

Brighton 02

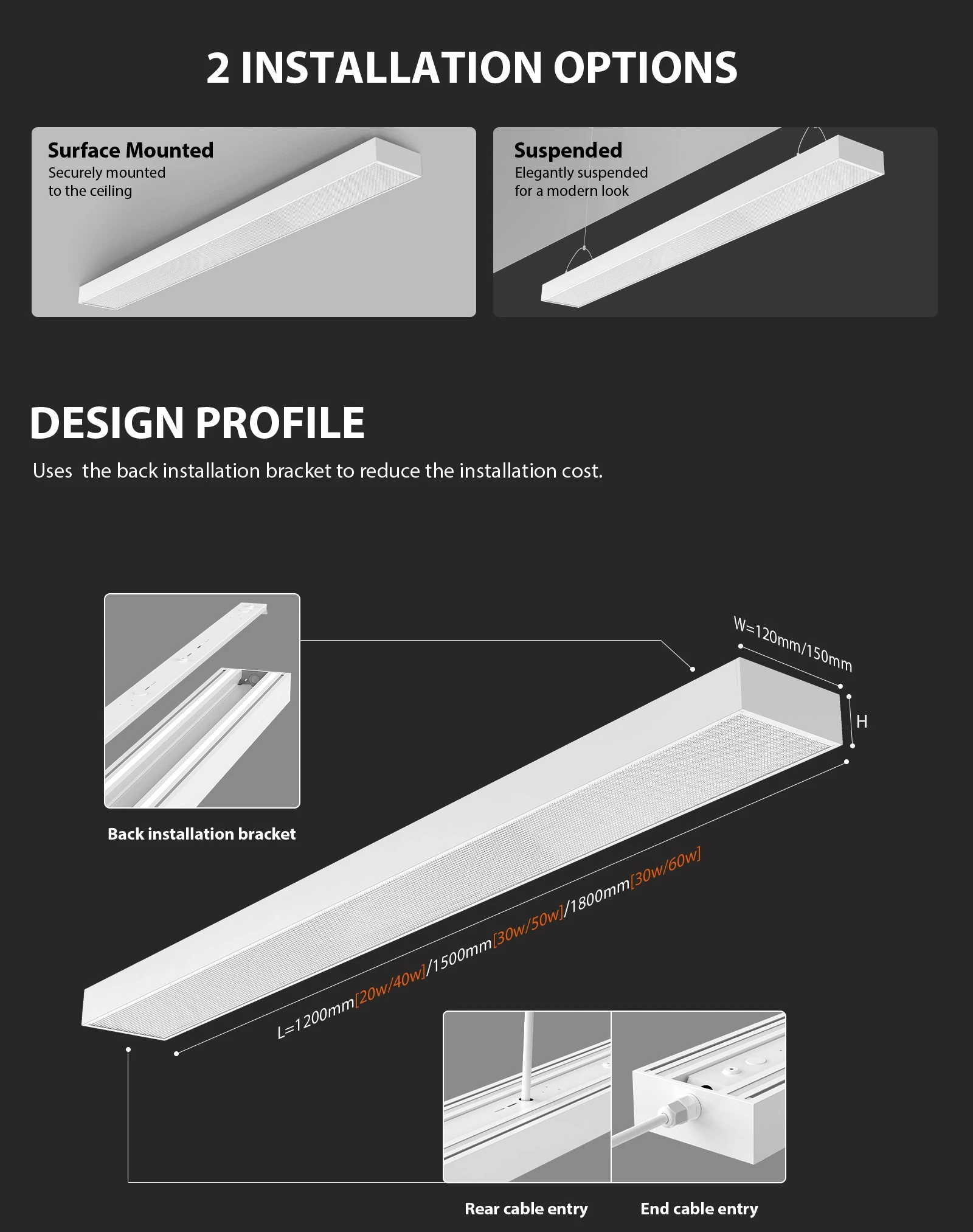

Brighton 03

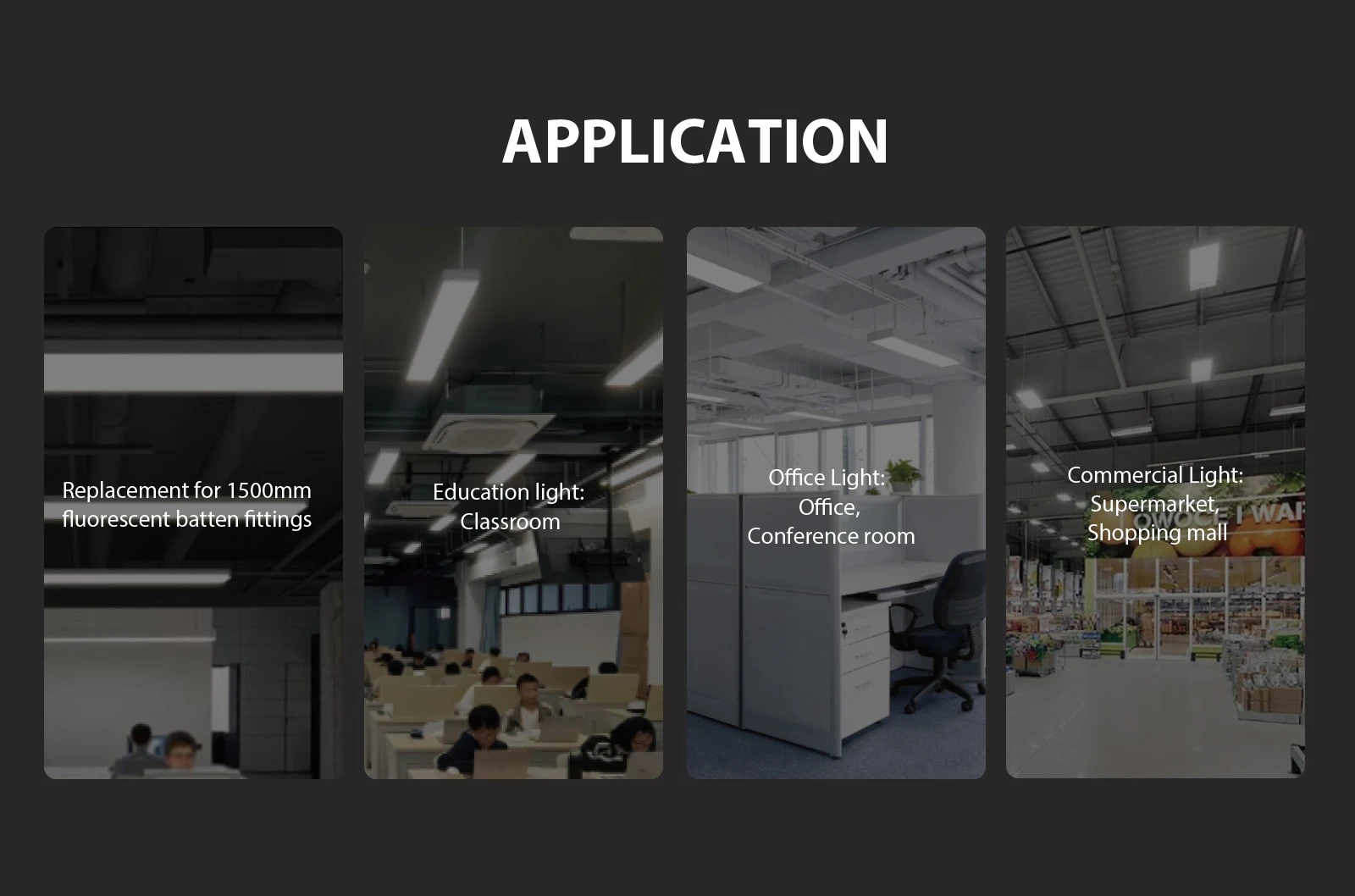

Brighton 04

Brighton 01

Brighton 02

Brighton 03

Brighton 04
